IPS TFT 1.54 inch, SPI TFT LCD 1.54 inch Product Introduction
Square display screen refers to a special LCD product with an aspect ratio of 1:1, which can be customized and cut according to the customer's design. Square screen displays are gradually attracting people's attention, with ultra-thin overall size, high brightness, long display life, and good heat dissipation. SAEFDISPLAY can provide square displays with sizes of 0.85 ", 1.3", 1.33 ", 1.4", 1.44 ", 1.54", 3.95 ", 4", and 7.6 ", which are more commonly used in handheld devices, smart home devices, and other special installation environments.
SFTO154JY-7166AN is a full-color square TFT LCD display with a diagonal size of 1.54 inches and a resolution of 240x240. This module supports SPI interface, making it very convenient for users to program and use. The module size of SFTO154JY-7166AN is 31.52 x 33.72mm, and the active area size is 27.72 x 27.72mm. It is controlled by ST7789P3, with a logic power supply voltage range of 3.0V to 3.6V.
This square TFT LCD can operate within a temperature range of -20 ℃ to+70 ℃, and its storage temperature range is -30 ℃ to+80 ℃. SFTO154JY-7166AN can be equipped with a newly designed resistive touch screen (RTP) or capacitive touch screen.
Feature
| Item | Specification | Unit |
| Display Mode | Normally Black, Transmissive | / |
| Viewing Direction | ALL | / |
| Colors | 262K | / |
| Drive IC | ST7789 | / |
| Interface Type | 4 Wire SPI | / |
| Dimensional Outline | 31.52(W) x 33.72(H) x 1.94(T) | mm |
| LCD Active Area | 27.72(W) x 27.72(H) | mm |
| Resolution | 240 RGB(H) x 240(V) | pixels |
| Pixel Pitch | 0.1155(W) x 0.1155(H) | mm |
IPS TFT 1.54 inch, SPI TFT LCD 1.54 inch Product Drawing
Pin Definition
| Pin.No | Symbol | Description |
| 1 | GND | Ground |
| 2 | D/C | Register select pin D/C=’ 1’ : Display data. D/C=’0’ : Command data. |
| 3 | CS | Chip select pin(“Low” enable) |
| 4 | SCL | Serial clock pin |
| 5 | SDA | Serial data input / output |
| 6 | RESET | LCM Reset pin |
| 7 | VCC | Power supply for Analog(2.8V-3.3V) |
| 8 | GND | Ground |
| 9 | LEDA | Anode of Backlight |
| 10 | LEDK | Cathode of Backlight |
Maximum Ratings
| Parameter | Symbol | Min | Max | Unit |
| Logic Supply Voltage | IOVCC | -0.3 | 4.6 | V |
| Analog Supply Voltage | VCC | -0.3 | 4.6 | V |
| Operating temperature | Top | -20 | 70 | ℃ |
| Storage temperature | Tst | -30 | 80 | ℃ |
| Humidity | RH | -- | 90%(Max60C) | RH |
Electrical Characteristics
| Parameter | Symbol | Min | Typ | Max | Unit |
| Logic Supply Voltage | IOVCC | 1.65 | 1.8/2.8 | 3.3 | V |
| Analog Supply Voltage | VCC | 2.6 | 2.8 | 3.3 | -- |
| Input Current | Idd | -- | 20 | -- | mA |
| Luminance | | -- | 250 | -- | Cd/m2 |
Optical Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
| Viewing Angle Range | Horizontal | Θ3 | CR>10 | 75 | 80 | - | Deg. |
| Θ9 | 75 | 80 | - | Deg. |
| Vertical | Θ12 | 75 | 80 | - | Deg. |
| Θ6 | 75 | 80 | - | Deg. |
| Contrast ratio | CR | Θ = 0 | 700 | 900 | - | - |
| Transmittance | Tr | - | 4.6 | 5.4 | - | % |
| Color Gamut | CG | - | 45 | 50 | - | % |
| Reproduction of color | Red | Rx | Θ = 0 | 0.601 | 0.631 | 0.661 | - |
| Ry | 0.300 | 0.282 | 0.660 | - |
| Green | Gx | 0.252 | 0.282 | 0.312 | - |
| Gy | 0.514 | 0.544 | 0.574 | - |
| Blue | Bx | 0.108 | 0.138 | 0.168 | - |
| By | 0.125 | 0.155 | 0.185 | - |
| White Chromaticity | Wx | Θ = 0 | 0.261 | 0.291 | 0.321 | - |
| Wy | 0.304 | 0.334 | 0.364 | - |
| Response Time | Tr ＋ Tf | Ta= 25 C Θ = 0 | - | 30 | 35 | ms |

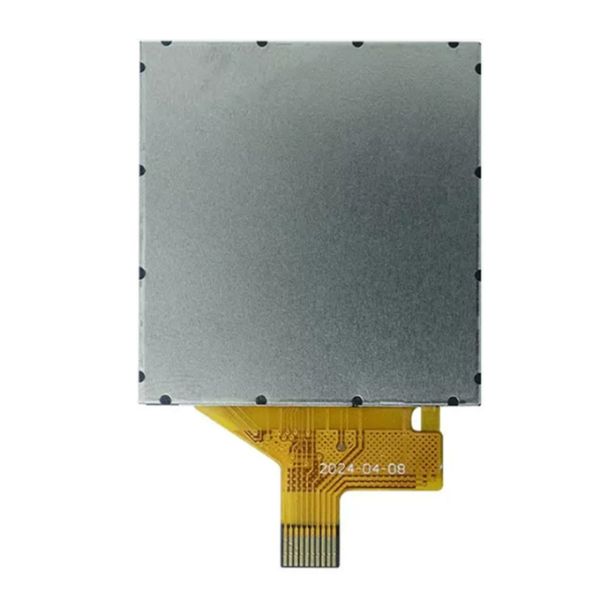

IPS TFT 1.54 inch, SPI TFT LCD 1.54 inch Product Image
Reliability Test Condition
| No | ITEM | CONDITION | CRITERION |
| 1 | High Temperature (Non-Operating Test) | 80℃*240Hrs | No Defect Of Operational Function In Room Temperature Are Allowable (.IDD of LCM in Pre-and Post-Test Should Follow Specification |
| 2 | Low Temperature (Non-Operating Test) | -30℃*240Hrs |
| 3 | High Temperature/Humidity Non Operating Test | 60℃*90%RH*240Hrs |
| 4 | High Temperature Operating Test | 70℃*240Hrs |
| 5 | Low Temperature Operating Test | -20℃*240Hrs |
| 6 | Thermal Shock Test | -20 ℃(30Min)<>70 ℃(30Min) * 10CYCLES |
