COB 1602 Character LCD Display 16x2 With White Red Orange Character

Brand Name : SAEF

Model Number : SF-1602VA

Certification : ISO9001 / ISO14000

Place of Origin : ShenZhen / China

MOQ : 3 pcs

Price : USD1.xx Reference price, Price is negotiable based on order lot quantity

Payment Terms : L/C, , T/T, Western Union

Supply Ability : 3000K pcs per month

Delivery Time : 3-5 weeks

Packaging Details : Standard Exportation Package

Product : 16x2 Characters VA LCD Module

Characters / Columns : 16 Characters x 2 Lines

LCD Type : VA Negative

Optics : All viewing angles

Outline Dim. : 80.0×36.0×11.2 mm

Viewing Area : 64.5×13.9 mm

Dot pitch : 0.59×0.65 mm

Driving method : 1/16 Duty cycle, 1/5 Bias

Operating Temp : -20°C to +70°C ( Customizable )

Voltage : 3.3V, 5V optional

Dot Matrix : 5 x 8 Dots includes cursor

Character Size : 2.90×5.15 mm

Controller : SPLC780D or Equivalent

Interface : 4-bit or 8-bit MPU, Option 6800, SPI, I2C

Pin number : 16

Compliance : REACH & RoHS Compliant

Contact Now

COB 1602 LCD 16x2 Display VA White Red Orange Yellow Green Amber Character On Black LED Background

VATN 16x2 LCD Description

The demands of high contrast ratio and wide view angle for displays are getting more and more popular. There is one kind of display can meet the demand with better performance than DFSTN with cheaper cost, that is VATN display. SF1602VA is a 16 characters by 2 lines display, there are many color options for choice, such as White, Blue, Yellow, Red, Green, Purple, Orange etc. Operating Voltage is 3.3V and 5V optional.

VATN LCD is featured with wide viewing angle and high contrast. Below are the key Advantages of VATN Display:

Super high contrast ratio: can be up to 120:1
Wide viewing angle: around 170(H) 110(V)
Mode: Negative mode only
Available Back light:white/green/yellow-green/red/blue
High backlight brightness
Four colors silk ink of custom design optional

Color : Red LCD display, green LCD display, blue LCD display, yellow LCD display, white LCD display
Display Format: LCD 8x2, LCD 16x1, LCD 16x2, LCD 20x2 etc.

Product: 16x2 Characters VA LCD Module Characters / Columns: 16 Characters X 2 Lines
LCD Type: VA Negative Optics: All Viewing Angles
Outline Dim.: 80.0×36.0×11.2 Mm Viewing Area: 64.5×13.9 Mm
Dot Pitch: 0.59×0.65 Mm Driving Method: 1/16 Duty Cycle, 1/5 Bias
Operating Temp: -20°C To +70°C ( Customizable ) Voltage: 3.3V, 5V Optional
Dot Matrix: 5 X 8 Dots Includes Cursor Character Size: 2.90×5.15 Mm
Controller: SPLC780D Or Equivalent Interface: 4-bit Or 8-bit MPU, Option 6800, SPI, I2C
Pin Number: 16 Compliance: REACH & RoHS Compliant

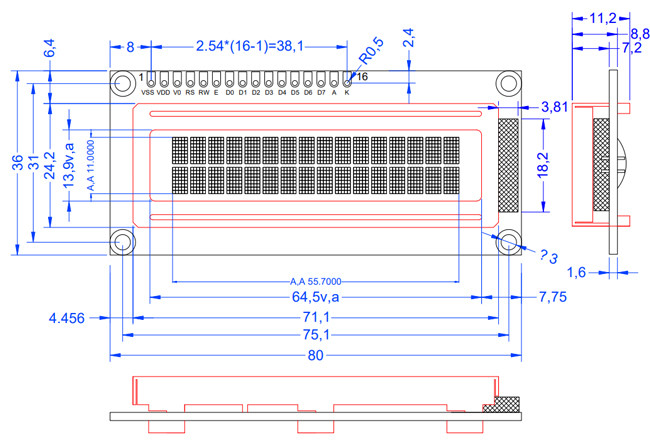

VATN 16x2 LCD Drawing

COB 1602 Character LCD Display 16x2 With White Red Orange Character

COB 1602 Character LCD Display 16x2 With White Red Orange Character

VATN 16x2 LCD Real Product Image

COB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange Character

FACTORY AND FACILITIES

COB 1602 Character LCD Display 16x2 With White Red Orange Character

COB 1602 Character LCD Display 16x2 With White Red Orange Character

COB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange Character

COB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange Character

COB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange Character

COB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange CharacterCOB 1602 Character LCD Display 16x2 With White Red Orange Character

CONTACT

Welcome to inquire via ck@saef.com.cn

Search Keyword: 16x2 lcd, 16x2 Character lcd, lcd 16x2, 16x2 Character, COB 16x2, 16x2 VATN LCD, IIC 16x2, SPI 16x2 monochrome 16x2 display, 16x2 VA lcd.
